Harley Sissy Bar Upright Softail Chrome 51477-06 2006-2017 Fat Boy

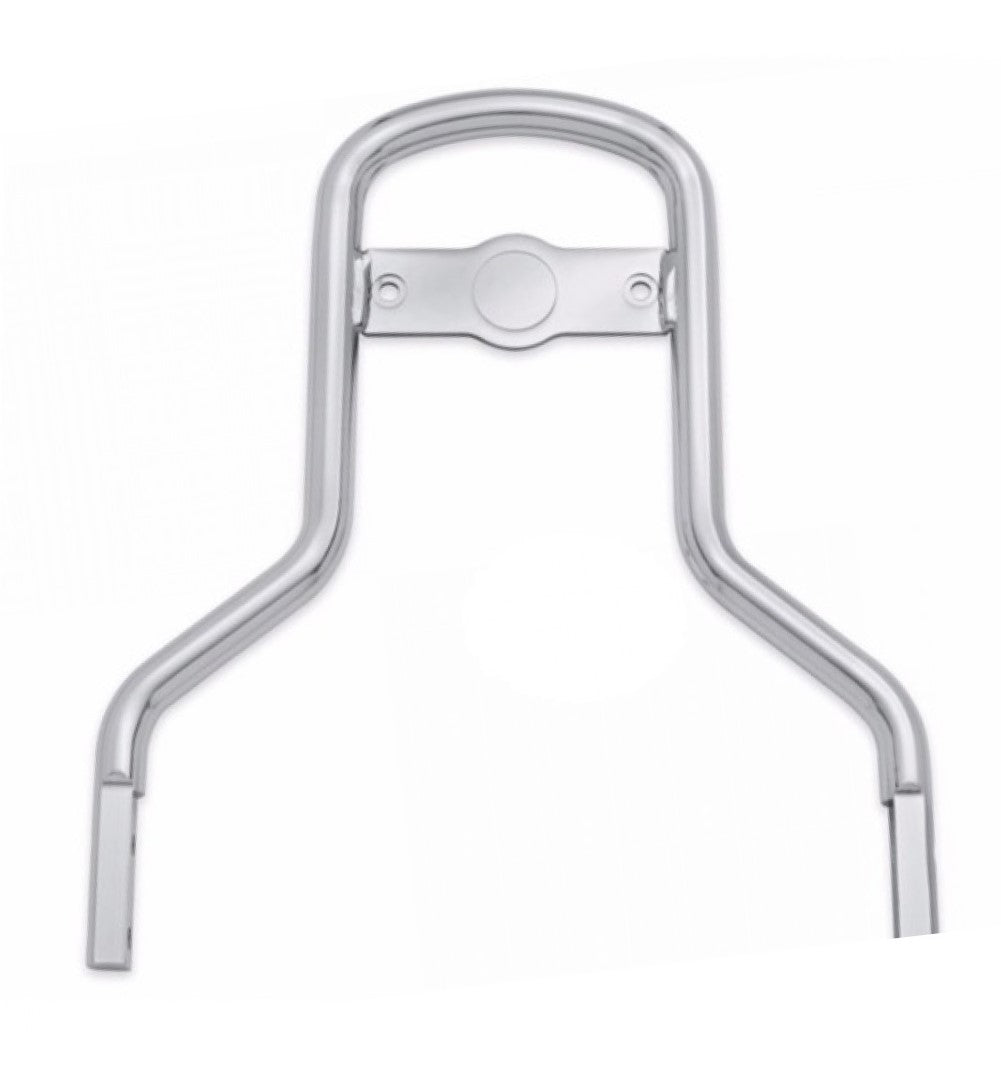

Add passenger backrest support to your Harley-Davidson Softail with this chrome Low Mini-Medallion Style Sissy Bar Upright. Designed for select 2006-2017 wide-rear-tire Softail models, this round bar upright provides a mounting point for compatible passenger backrest pads and sideplates.

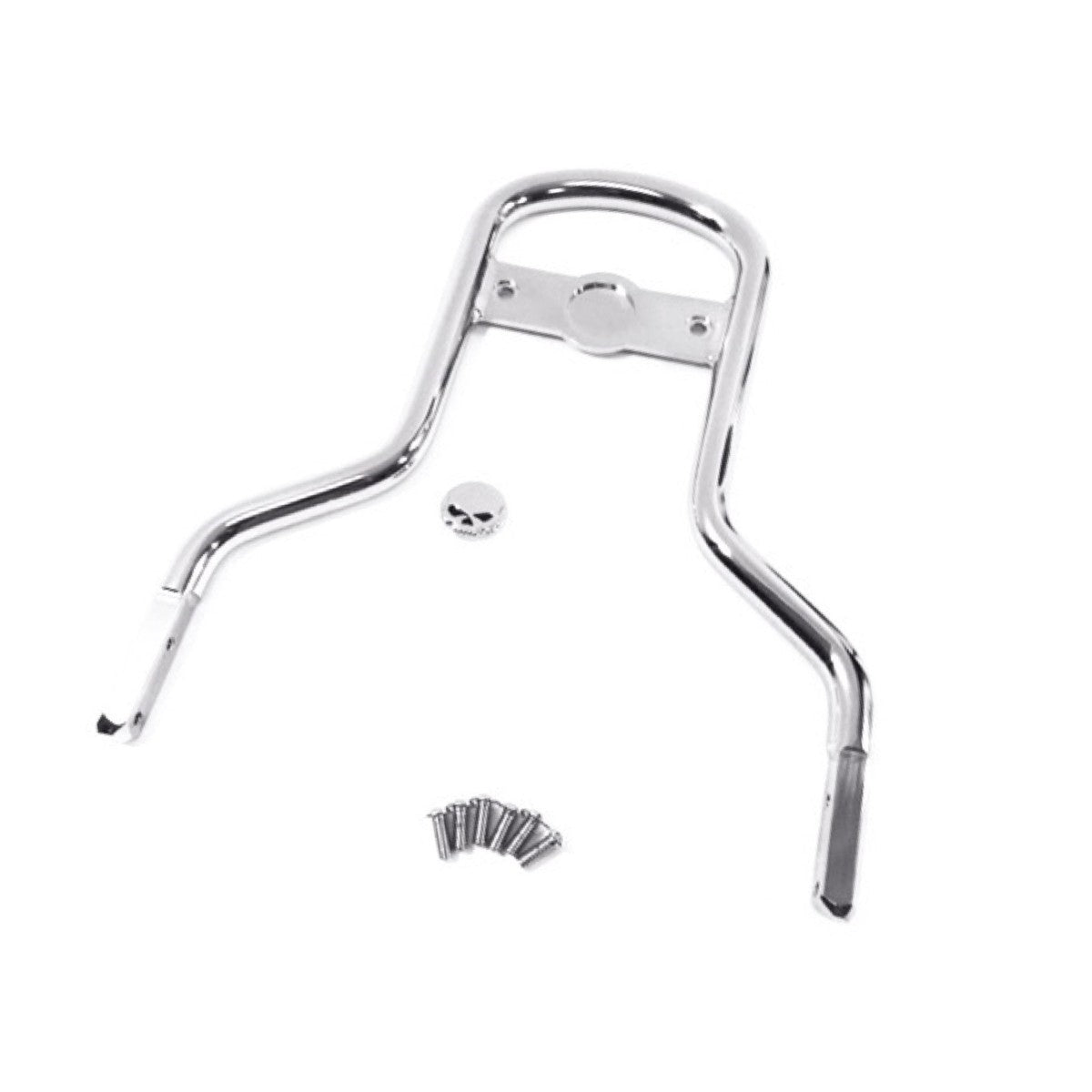

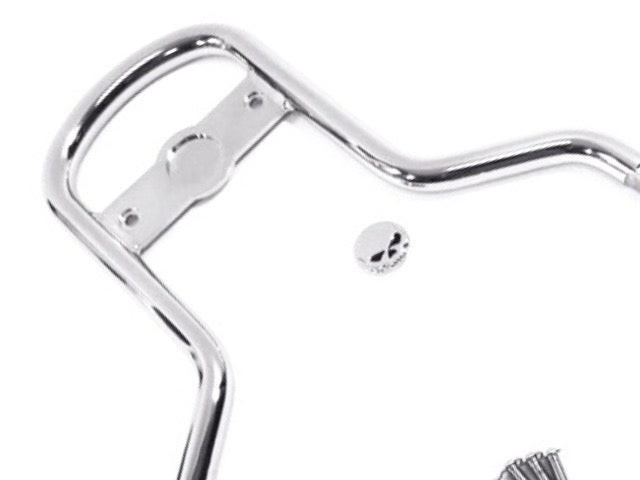

The upright includes a small chrome metal skull medallion and six mounting bolts. The two pad mounting holes measure approximately 3 1/2 inches center to center.

Equivalent to Harley-Davidson part number 51477-06.

Features
Chrome round bar construction
Low Mini-Medallion Style Sissy Bar Upright
Includes small chrome metal skull medallion
Six mounting bolts included
Two bolts for mounting the backrest pad
Four bolts for mounting the sideplates
Pad mounting holes measure approximately 3 1/2 inches center to center
Designed for select 2006-2017 Softail models
Compatible with select Medium Low passenger backrest pads
Equivalent to Harley-Davidson 51477-06
Sideplates sold separately
Fitment

Fits select 2006-2017 Harley-Davidson Softail models with the wide rear tire, including:

FLSTF Fat Boy
FLSTFB Fat Boy Lo
FLSTFBS Fat Boy S
FLSTSB Cross Bones
FLSTSE CVO Softail Convertible
FXST Softail Standard
FXSTB Night Train
FXSTC Softail Custom
FXSTS Springer Softail
Select CVO Softail models

Important fitment notes:

Does not fit a 2006 Fat Boy equipped with the narrow rear tire.
Requires compatible sideplates, which are not included.
2007-2010 FXSTC models require a separate fender-mounted seat.
Verify your model, rear tire configuration, and sideplate compatibility before ordering.
OEM Cross Reference

Harley-Davidson: 51477-06

Installation

The upright installs using compatible sideplates, which are sold separately. Six bolts are included with the upright: two for attaching a compatible backrest pad and four for attaching the sideplates.

The backrest pad mounting holes are approximately 3 1/2 inches center to center. Confirm the mounting pattern of your backrest pad before installation.

FAQs

What Harley-Davidson part number does this sissy bar upright replace?
This chrome Low Mini-Medallion Style Sissy Bar Upright is equivalent to Harley-Davidson 51477-06.

What is included with the upright?
The package includes the chrome upright, a small chrome metal skull medallion, and six bolts. Two bolts mount the pad and four bolts mount the sideplates.

Are the sideplates included?
No. Compatible sideplates are required for installation but are sold separately.

What backrest pads fit this upright?
The upright is designed for compatible Medium Low Mini-Medallion Style passenger backrest pads with the appropriate two-bolt mounting pattern.

What is the pad mounting-hole spacing?
The two pad mounting holes measure approximately 3 1/2 inches center to center.

Will this fit a 2006 Fat Boy?
It does not fit a 2006 Fat Boy with the narrow rear tire. The listed fitment is for applicable wide-rear-tire Softail configurations.

Is this upright compatible with the 51640-06, 51622-07, and 51641-06 pads?
These pad part numbers are listed with this style of Mini-Medallion upright. Verify the specific pad, upright, and sideplate combination before ordering.
